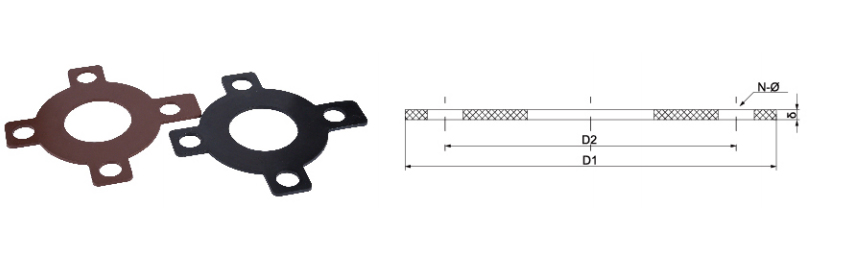

SCH8O/DIN UPVC/CPVC Flange Gasket

SCH8O/DIN UPVC/CPVC Flange Gasket

UPVC/CPVC flange gaskets are precisely designed to maintain sealing performance under high pressure and temperature fluctuations, effectively preventing medium leakage. Their lightweight nature reduces installation and maintenance difficulty, while the environmentally friendly, non-toxic material aligns with modern green building standards.

These gaskets are corrosion-resistant, heat-resistant, and chemically stable, making them ideal for industrial and residential applications such as water supply, chemical processing, and food production pipelines.

Contacta Nos
  • SCH8O/DIN UPVC/CPVC Flange Gasket
Praecedens：SCH8O/DIN UPVC/CPVC Reducer Bushing
Deinde：SCH8O/DIN UPVC/CPVC Blind Flange
parametrum applicatio Normae Technicae

  • SIZE/NOM

    dn20

    dn25

    dn32

    dn40

    dn50

    dn63

    dn75

    dn90

    dn110

    dn140

    dn160

    dn225

    dn280

    dn315

    (DN15)

    (DN20)

    (DN25)

    (DN32)

    (DN40)

    DN50)

    (DN65)

    (DN80)

    (DN100)

    (DN125)

    (DN150)

    (DN200)

    (DN250)

    (DN300)

    (1/2")

    (3/4")

    (1")

    (1-1/4")

    (1-1/2")

    (2")

    (2-1/2")

    (3")

    (4")

    (5")

    (6")

    (8")

    (10")

    (12")

    DIN

    D1

    95

    105

    115

    140

    150

    165

    185

    200

    220

    250

    285

    340

    395

    445

    D2

    65

    75

    85

    100

    110

    125

    145

    160

    180

    210

    240

    295

    350

    400

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ14

    4-Φ14

    4-Φ14

    4-Φ18

    4-Φ18

    4-Φ18

    4-Φ18

    8-Φ18

    8-Φ18

    8-Φ18

    8-Φ22

    8-Φ22

    12-Φ22

    12-Φ22

    ANSI

    D1

    89

    98

    108

    117

    128

    155

    178

    192

    229

    254

    284

    343

    406

    481

    D2

    61

    70

    79

    89

    98

    121

    140

    152

    191

    216

    241

    298

    362

    432

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ16

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ22

    8-Φ22

    8-Φ22

    12-Φ24

    12-Φ24

    JIS

    D3

    70

    75

    90

    100

    105

    120

    140

    150

    175

    210

    240

    290

    355

    400

    D2

    1

    35

    42.5

    48.5

    61

    73

    90

    105

    132

    158

    186

    238

    289

    341

    δ

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    3

    N-Φ

    4-Φ15

    4-Φ15

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    4-Φ19

    8-Φ19

    8-Φ19

    8-Φ23

    8-Φ23

    12-Φ23

    12-Φ25

    16-Φ25

SCH8O/DIN UPVC/CPVC Flange Gasket - Corrosion-Resistant Sealing Solutions

  • Material Composition: Manufactured from high-grade UPVC and CPVC compounds, providing resistance to a wide range of corrosive media including acids, alkalis, and salts.
  • Standard Compliance: Designed and produced in strict adherence to SCH80 and DIN pipe flange standards, ensuring dimensional compatibility and a secure fit for industrial piping systems.
  • Pressure and Temperature Rating: Engineered to maintain a reliable seal under specified pressure and temperature conditions, which is critical for **UPVC pipe fittings** in **chemical processing applications**.

Our SCH80 and DIN standard UPVC/CPVC flange gaskets are engineered for reliable sealing in demanding fluid transfer systems. Each gasket is fabricated to meet specific industry standards, ensuring precise dimensions and material integrity. The selection of UPVC or CPVC materials addresses distinct application requirements: UPVC for a broad range of general industrial uses, and CPVC for higher temperature and more aggressive chemical environments. These gaskets are an essential component for preventing leaks at flange connections in **industrial pipe systems** and **water treatment plants**, contributing to operational safety and efficiency.

Technical Specifications

Material Applicable Standard Temperature Range Pressure Rating
UPVC SCH80, DIN 0°C to 60°C (32°F to 140°F) 1.0 MPa (150 PSI) at 20°C
CPVC SCH80, DIN 0°C to 95°C (32°F to 203°F) 1.0 MPa (150 PSI) at 20°C

Application Fields

This product is suitable for use in:

  • Chemical processing and storage facilities.
  • Water and wastewater treatment systems.
  • Plating and metal finishing operations.
  • Pharmaceutical and food processing industries.
  • HVAC and cooling systems.

FAQ

1. How does a UPVC gasket compare to a rubber gasket for sealing PVC flanges?

UPVC gaskets provide superior chemical resistance to many corrosive substances compared to general-purpose rubber gaskets. While rubber gaskets may offer higher flexibility, a **UPVC flange gasket** is chemically inert to a wider range of media, making it a more durable solution for **PVC pipe system leak prevention** in aggressive industrial environments. The choice depends on the specific chemical media and temperature. For detailed recommendations, our technical team can analyze your application requirements.

2. Are these gaskets suitable for high-pressure systems, and what is the maximum pressure rating?

Our UPVC and CPVC flange gaskets are rated for pressure up to 1.0 MPa (150 PSI) at 20°C. The pressure handling capability is directly related to temperature; as temperature increases, the pressure rating decreases. It is critical to adhere to the specified pressure and temperature envelope to ensure a reliable and leak-proof seal. For applications with higher pressure or temperature demands, alternative materials or flange types may be required. Please contact our engineering department for a free consultation on your specific **plastic pipe installation** challenges.
